Support Fork, Joystick Controller, and Battery Box Installation






Fork Installation: Shimming and Adjustments

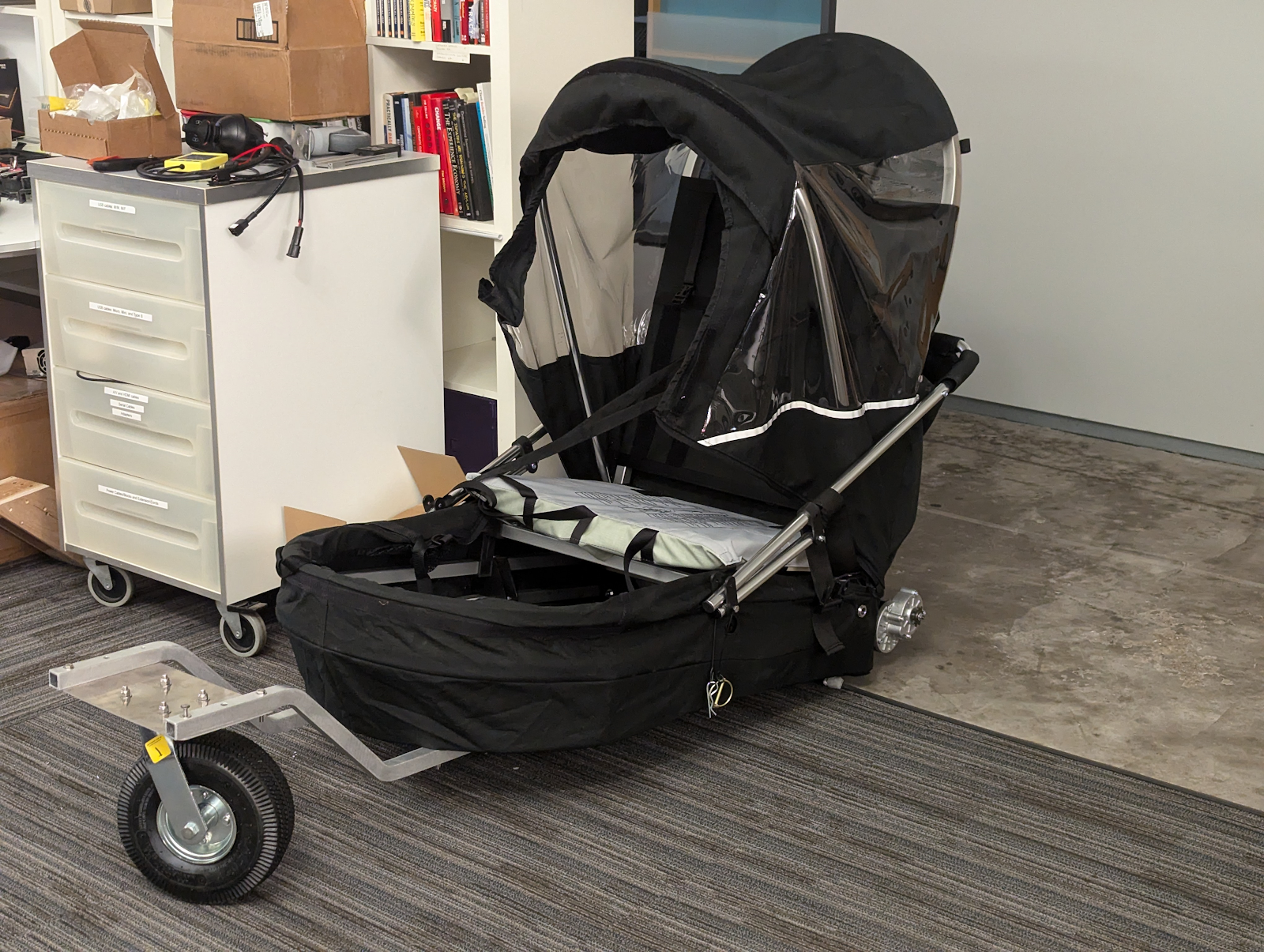

When the fork arrived, it wasn’t an exact fit, which required some shimming to make it work. Shimming helped align the fork properly, though it needed a few adjustments and some strategic bending to get it to fit perfectly. After a bit of trial and error, we finally achieved a solid, smooth fit. This is crucial because the fork has to handle both the steering and the additional weight that comes with adding electric components like the motor and battery.

Battery Box Mounting: Function Over Form

Mounting the battery was a bit more challenging than expected, primarily because of the need to balance weight distribution. We decided to mount the battery box directly on top of the front fork. While it’s not the most aesthetically pleasing solution, it’s functional. The placement distributes weight more evenly, helping with the overall stability of the stroller, especially when navigating turns or uneven terrain. We will likely revisit this mounting down the line for a more polished look, but for now, the priority is function over form.

Joystick Controller: A Game-Changer for Maneuverability

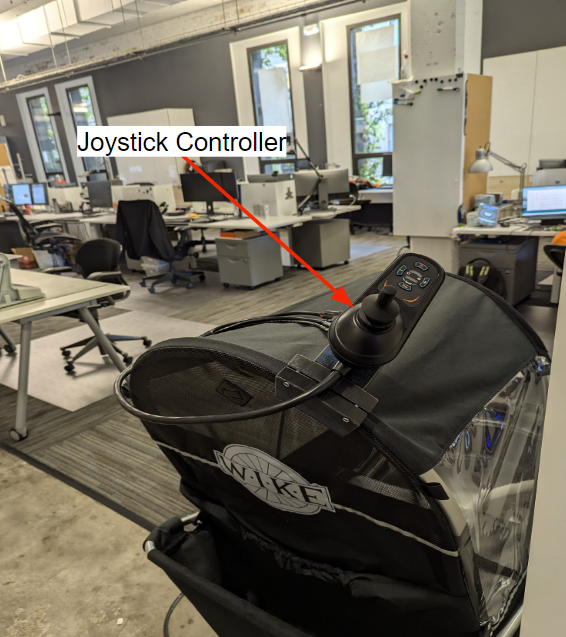

One of the standout features of the Juria is the joystick controller, which we mounted directly onto the handlebar. This setup allows for intuitive and precise control, making it easier to maneuver the stroller in a variety of environments. The joystick will enable smooth transitions between speeds and directions, giving the user complete control over how the stroller navigates.

Controller Mounting: The Heart of the System

The controller, which is essentially the brain of the electric system, has been mounted successfully. This component will manage the power distribution and regulate the speed, giving more control over the stroller’s operation. Properly securing the controller was a key step, as it needs to be both accessible for wiring and durable enough to withstand outdoor conditions.

Wiring: The Next Hurdle

With the battery and controller in place, the next major task is the wiring. This step is crucial because it ties everything together—powering the motor, connecting the throttle, and linking any additional features. Wiring can be tedious, especially when ensuring all connections are secure and waterproofed for safety.

Test Drives Coming Soon

The first test drives are just around the corner—hopefully within the next week or two. These will be critical in evaluating how well everything has come together and identifying any further adjustments that need to be made. We will be looking forward to seeing how the Juria performs with the added electric power and how the various components hold up under real-world conditions with real-world people.
